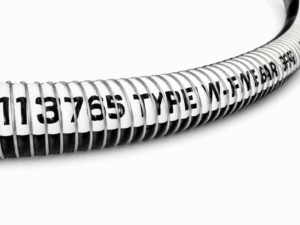

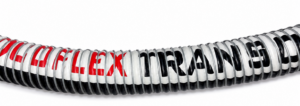

Composite Hose / Transoil Composite Hose

• Suitable for suction and discharge transfer of petroleum products.
• In-plant applications.
• Bottom loading applications.
• Light duty dockside applications.
• Suitable for conveying tallow.
• Suitable for conveying high aromatic hydrocarbons.

• Composite hose made from polypropylene fabrics and films.
• Abrasion-resistant PVC-coated fabric outer cover.
• Reinforced with internal and external wire helixes.
• Barrier layer for 100% aromatic hydrocarbons.
• Optional rope lagging for external protection.
• Inner Wire: Galvanised zinc coated mild steel.
• Lining: Polypropylene Fabric.
• Outer Cover: PVC Coated Terylene Weave Fabric.
• Colour Code: Black/Blue outer cover with white/yellow stripe.
• Outer Wire: Galvanised zinc coated mild steel.
• Bore Diameter: 25–100 mm (1″–4″).
• Maximum Working Pressure: 150 psi / 10 bar.
• Maximum Length: 30 m / 100 ft.
• Minimum Burst Pressure: 4 times Working Pressure (Safety Factor 4:1).

• Depending on the conveyant: -30°C to +80°C.
• Vacuum Range: 0.9 bar.

Electrical Resistance:

• 2.5 Ohms/m for hose sizes < 2″.
• 1.0 Ohms/m for hose sizes > 2″.

• Maximum Elongation: 10% on proof pressure.
• Maximum Twist: 10°/m.

• Abrasion-resistant PVC-coated fabric cover.
• Barrier layer for 100% aromatic hydrocarbons.
• Optional rope lagging for additional external protection.
• Available with Stainless Steel outer wire for special applications; this version is called Transoil-S.

Manufactured to the specifications, where applicable, of EN 13765 Type 2.
